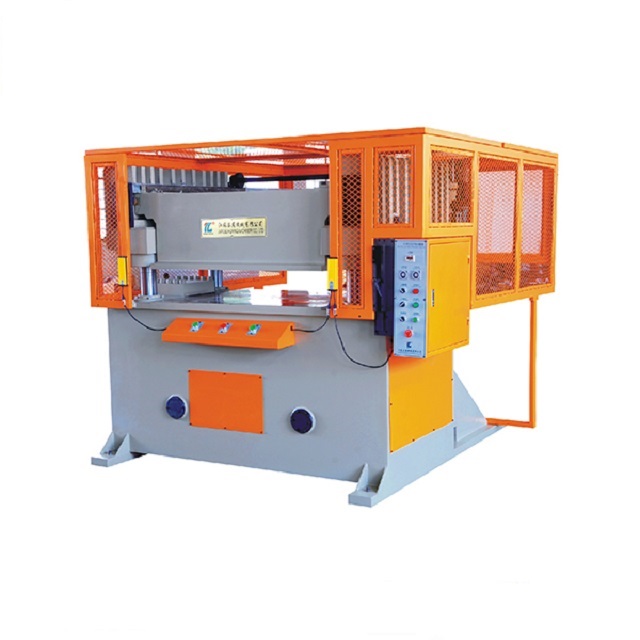

HYP3-6000 600Tons Hydraulic Receding Head Cutting Press Machine

Short Description:

Product Detail

Product Tags

The standard versions of HYP3-6000 600Tons Hydraulic Receding Head Cutting Press Machine include the 4-column press, with double balanced yoke, self lubricated bushings, hydraulic power unit, control cabinet with PLC control, automatic die finding system, frequency modulated head moving gear, or hydraulic cylinder controlled by sophisticated proportional valve system, two-hand and automatic operation mode, programmable photocell operation and protection system, protective covers.

Technical Specification

GM 6000 Type Receding Head Pressess

Cutting power ton.	Table-beam size mm	Pump motor kW 3×400/230 V 50/60 Hz		Daylight mm	Stroke adj. mm	Stroke speed mm/sec	Beam travel max. mm	Weight max. net kg
50	1200×900	5.5	1.1	220	15–180	64	850	4900
50	1600×650	5.5	0.75	220	15–180	64	650	4500
50, 80, 100	1600×850	5,5, 11, 15	1,1, 1,1, 1,5	220	15–180	64, 58, 65	650	5000, 4900, 5400
100, 120	1800×850	15, 15	1,5, 1,5	220	15–180	65, 53	650	7500, 7800
100, 120	1800×1050	15, 15	2,2, 2,2	220	15–180	65, 53	850	7900, 8100
80	2000×850	11	2.2	220	15–180	58	650	8800
80, 100	2000×1050	11, 15	2.2	220	15–180	58, 65	850	9300, 9600
